Description

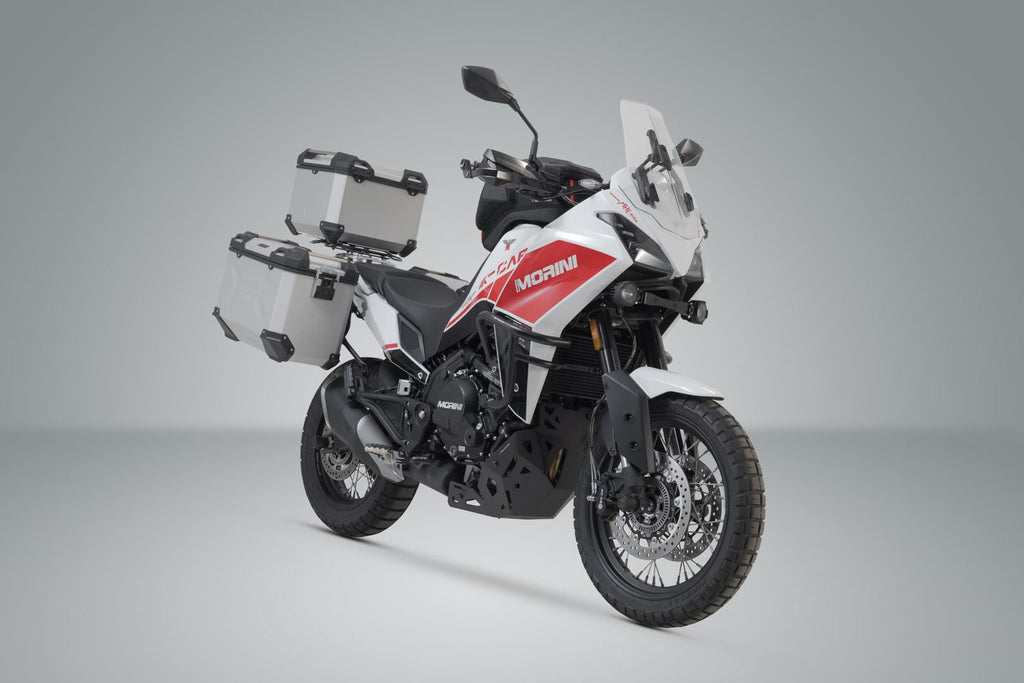

Adventure set luggage
This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases.
Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.
-

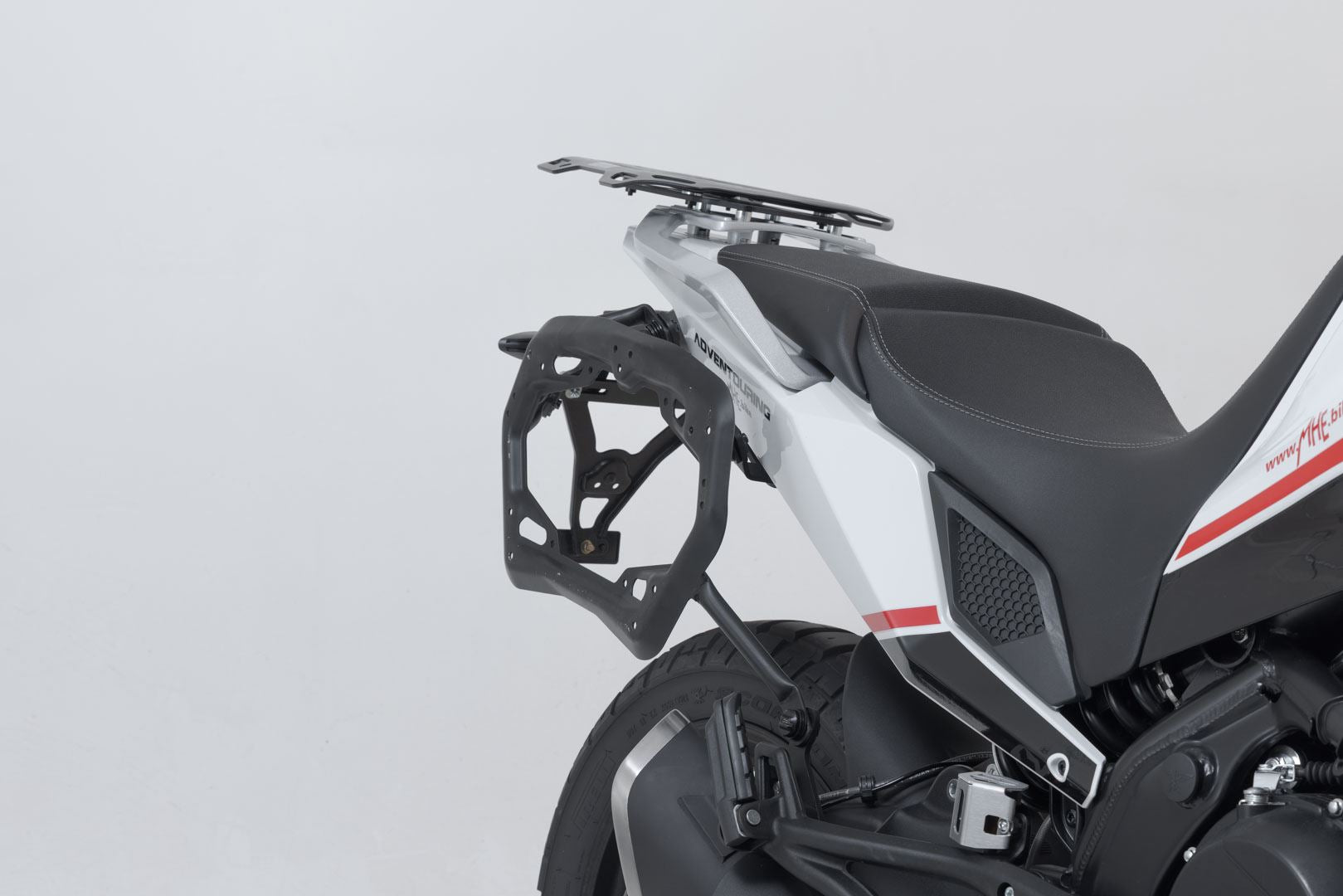

PRO Side carrier
Details
- Material: Steel
- Surface: powder coated
- Color: black
- Total Weight: appr. 5,3 kg / appr. 11.7 lb
-
Adapter kit for PRO side carrier
- Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
- Mounted on to the existing holes of the SW-MOTECH PRO side carrier
- For left and right sides
Details
- Total Weight: appr. 0,4 kg / appr. 0.8 lb
-

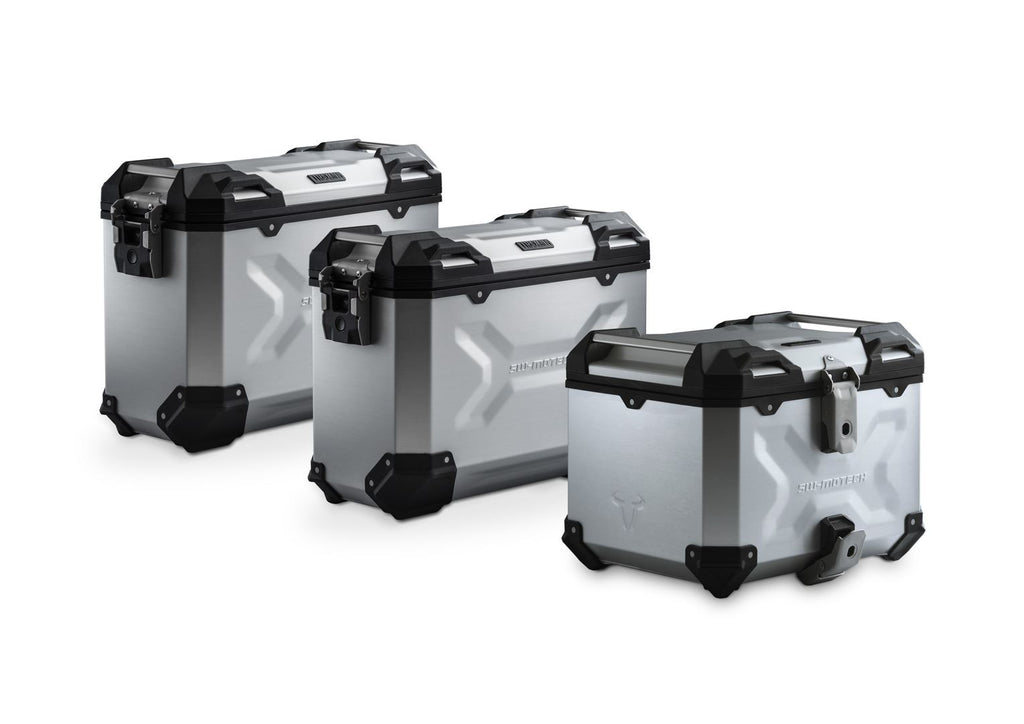

TRAX ADV L Aluminium case
- Model for the left side of the motorcycle
- Protection against oxidation and abrasion thanks to anodized finish
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: anodized
- Color: silver
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: appr. 7,4 kg / appr. 16.2 lb
- Total Volume: 45,0 l
Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
- Side carrier, adapter kit, TRAX lock set
-
TRAX ADV L Aluminium case
- Model for the right side of the motorcycle
- Protection against oxidation and abrasion thanks to anodized finish
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: anodized
- Color: silver
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: appr. 7,4 kg / appr. 16.2 lb
- Total Volume: 45,0 l
Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
Required for mounting
- Side carrier, adapter kit, TRAX lock set
-
TRAX lock set with PRO anti-theft protection
- 9 matching locks
- With anti-theft protection for PRO side carrier
- Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
- One key for all locks
Details
- Total Weight: appr. 0,6 kg / appr. 1.2 lb
-
Multi-tool key chain attachment
- Multitool as practical key chain
- Quick-release fastener opener for EVO and PRO side carriers
- Hex key (14 mm) - ideal for many motorcycle mirrors
- Hex keys in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- Key chain eyelet
- With laser-etched SW-MOTECH logo
Details
- Material: Stainless steel
- Surface: brushed
- Color: silver
- Total Weight: appr. 0,0 kg / appr. 0.1 lb
-

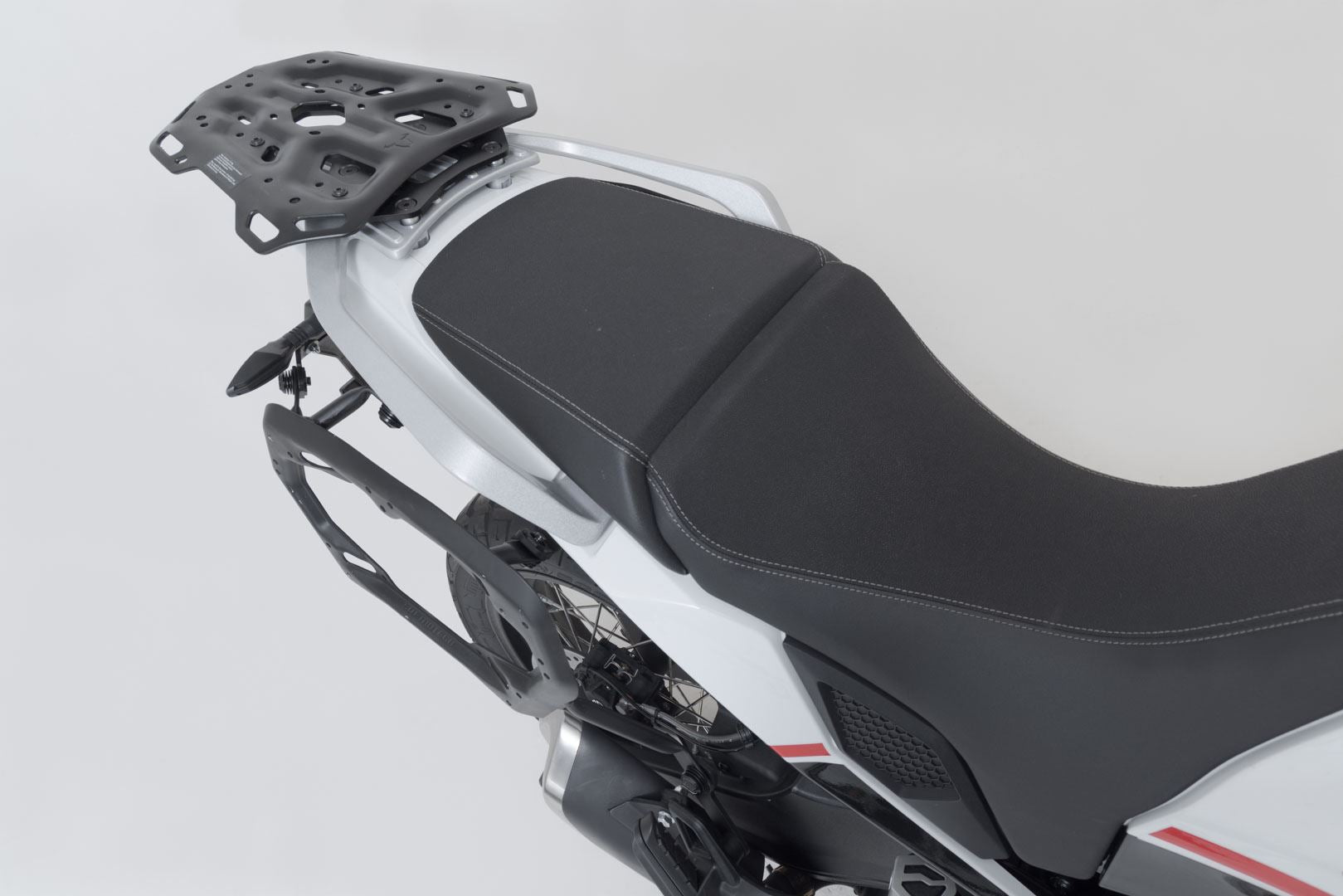

ADVENTURE-RACK Rack
- Extremely robust rack for long tours and off-road rides
- Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK
- Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
- Multiple functional bores: for TRAX top cases. SysBag with adapter plate are available separately with the appropriate adapter kit
- Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available
- Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
- Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
- Easy installation on original attachment points with bike-specific attachment elements
- Effective corrosion protection from black powder coating
- Made of light but sturdy 4mm-thick aluminum alloy
Details
- Material: Aluminum
- Surface: powder coated
- Color: black
- Total Weight: appr. 2,2 kg / appr. 4.8 lb
-
Adapter kit for ADVENTURE-RACK
- Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
- Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
- Easy mounting: the adapter kit is screwed onto the rack
Details
- Material: Polyamide / Stainless steel
- Color: black / silver
- Total Weight: appr. 0,2 kg / appr. 0.4 lb
Note
- The adapter kits for Sysbag 15/30 are already included in delivery together with the rear panel-mounted adapter plates.
-

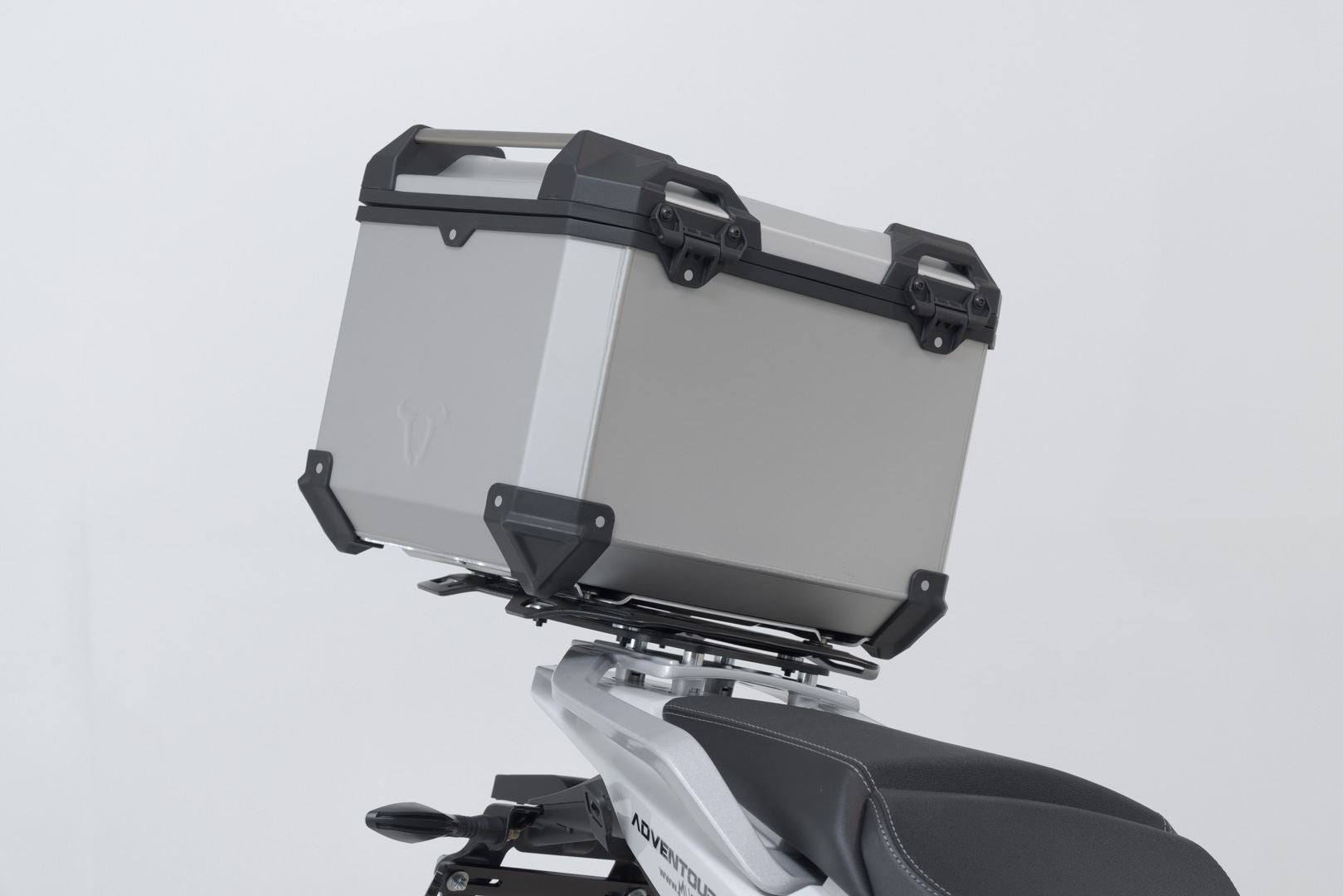

TRAX ADV Top case
- Protection against oxidation and abrasion thanks to anodized finish
- Premium top case made from 1.5 mm-thick aluminum
- Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
- 100% water- and dustproof due to robotic welding and punch rivet technology
- Theft protection: Case lid and case can be locked when on the carrier
- High stability thanks to the visually appealing and functional embossed sheet metal
- Additional protection from corners made of glassfiber-reinforced polyamide
- Easy to clean surface
- A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system
Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: anodized
- Color: silver
- Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
- Total Weight: appr. 6,1 kg / appr. 13.3 lb
- Total Volume: 38,0 l
Note
- Also available as a TRAX ADV top case system with ADVENTURE-RACK, adapters and lock set.
-
TRAX WP M/L accessory bag
- Waterproof accessory bag that can be lashed onto side cases
- For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
- 15 litres of additional storage, padded
- Circumferential, waterproof zipper enables quick access to the entire contents
- Overlapping lid is secured using plastic clips
- Divider for custom organisation of the interior
- Made of robust, easy to clean material
- Sleek design with reflective details
- Sturdy carrying handle
- 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
Details
- Material: 500D Polyester
- Color: black
- Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
- Total Weight: appr. 1,5 kg / appr. 3.2 lb
- Total Volume: 15,0 l
Note
- The TRAX WP M/L accessory bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.
Included in delivery
- 1 x TRAX ADV L Aluminium case, 45,00 l, silver, right
- 1 x TRAX ADV L Aluminium case, 45,00 l, silver, left
- 1 x TRAX ADV Top case, 38,00 l, silver
- 2 x PRO Side carrier
- 2 x Adapter kit for PRO side carrier
- 2 x TRAX lock set with PRO anti-theft protection
- 1 x ADVENTURE-RACK Rack
- 1 x Adapter kit for ADVENTURE-RACK
- 3 x TRAX lock set
- 2 x TRAX WP M/L accessory bag
- 6 x lid limiter
- 3 x Storage bags
- 1 x Multi-tool key chain attachment
- Mounting instructions
- Mounting material
Details
- Total Weight: appr. 32,3 kg / appr. 71.1 lb
- Total Volume: 158,0 l
